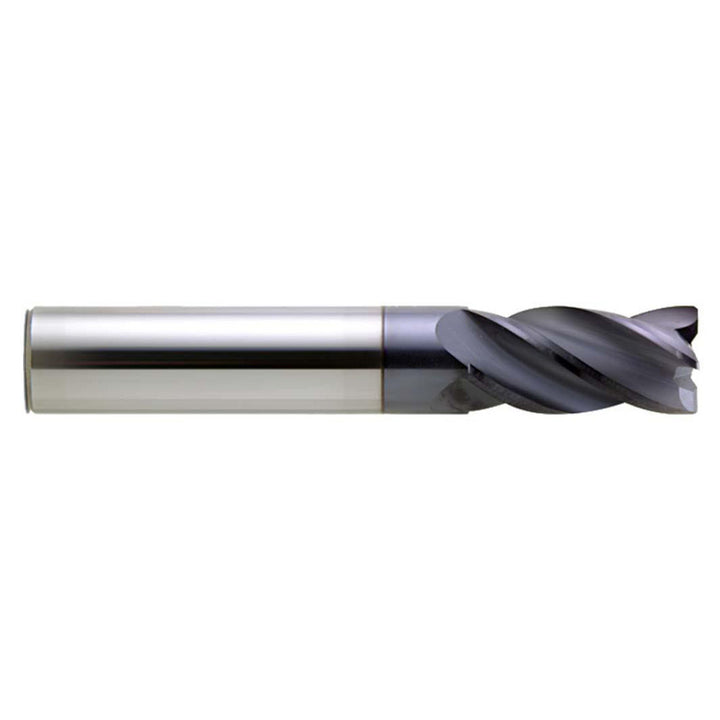

1/2" 4-Flute Solid Carbide Corner Radius End Mill, nACo - Melin Tool 10025

Melin Tool

1/2" 4-Flute Solid Carbide Corner Radius End Mill, nACo - Melin Tool 10025

MFR# 10025Series VHMG

$89.82List $115.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingnACo

Description

The Melin Tool 10025 is a 1/2 4-flute Solid Carbide corner radius end mill with a nACo finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series VHMG.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACo
Coolant throughNo
Corner radius0.0250
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material removal typeRoughing
Mill diameter in1/2
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
