Melin Tool

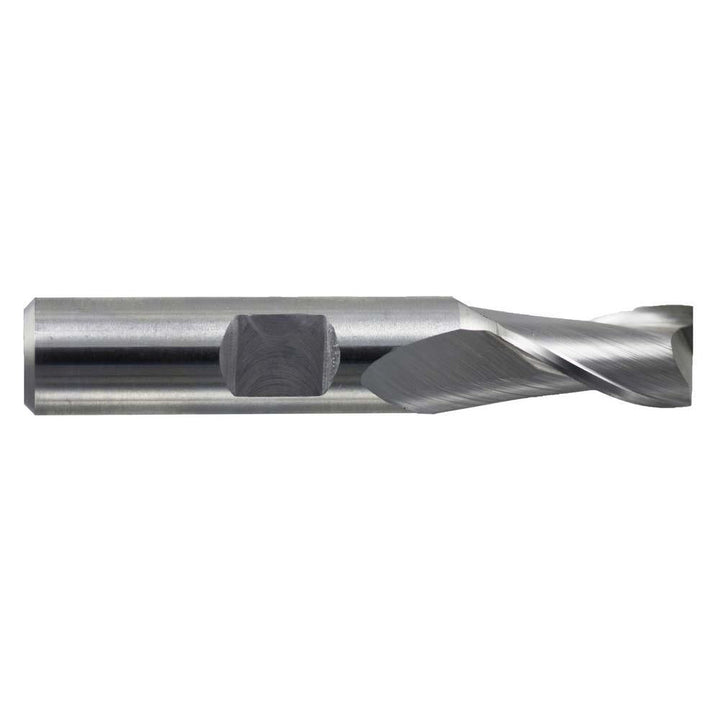

17/32" 2-Flute Cobalt Square End Mill - Melin Tool 10076

MFR# 10076Series A

$40.96List $52.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter17/32

Flutes2

MaterialCobalt

CoatingBright/Uncoated

Description

The Melin Tool 10076 is a 17/32 2-flute Cobalt (M42) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 1-1/8 length of cut, 3-1/8 overall length. Series A.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeM42

Mill diameter in17/32

Mill diameter tolerance+0.0015/-0.0000 in

Number of flutes2

Overall length in3-1/8

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter in1/2

Shank diameter tolerance+0.0015/-0.0000 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
