3/16in" 4-Flute Solid Carbide Corner Radius End Mill - Melin Tool 11073

Melin Tool

3/16in" 4-Flute Solid Carbide Corner Radius End Mill - Melin Tool 11073

MFR# 11073Series CCMG

$18.71List $24.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

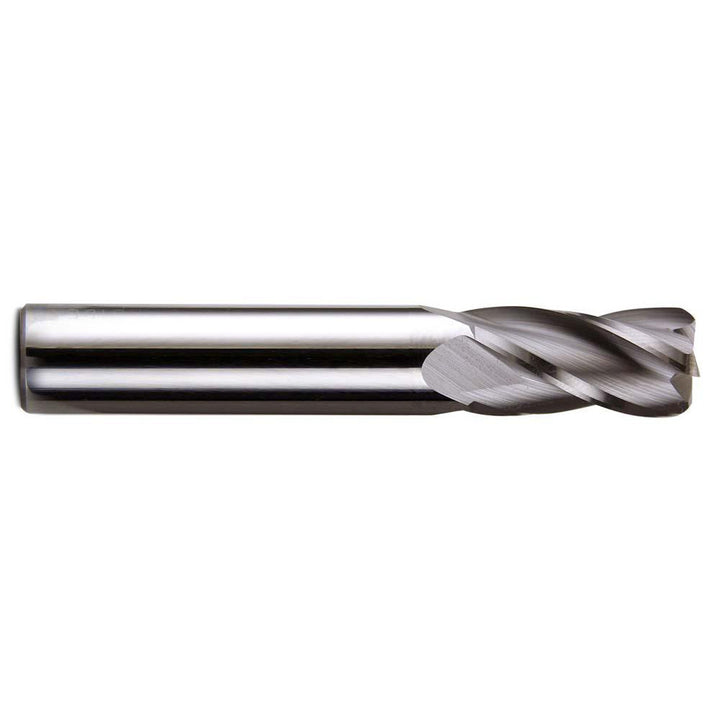

The Melin Tool 11073 is a 3/16in 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 5/8in length of cut, 2in overall length. Series CCMG.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in5/8in
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in3/16in
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
