Melin Tool

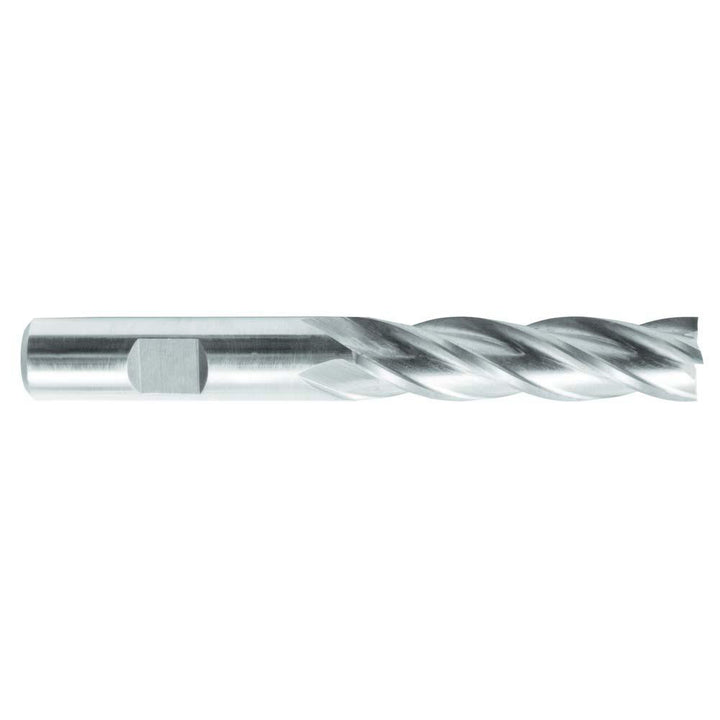

9/16" 4-Flute Cobalt Square End Mill - Melin Tool 11392
MFR# 11392Series CC
$57.48List $72.99
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/16
Flutes4
MaterialCobalt
Description
The Melin Tool 11392 is a 9/16 4-flute Cobalt (M42) square end mill. 2-1/2 length of cut, 4-1/2 overall length. Series CC.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length of cut range2.0000+
Length typeLong
Material gradeM42
Mill diameter in9/16
Mill diameter tolerance+0.0015/-0.0000 in
Number of flutes4
Overall length in4-1/2
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
