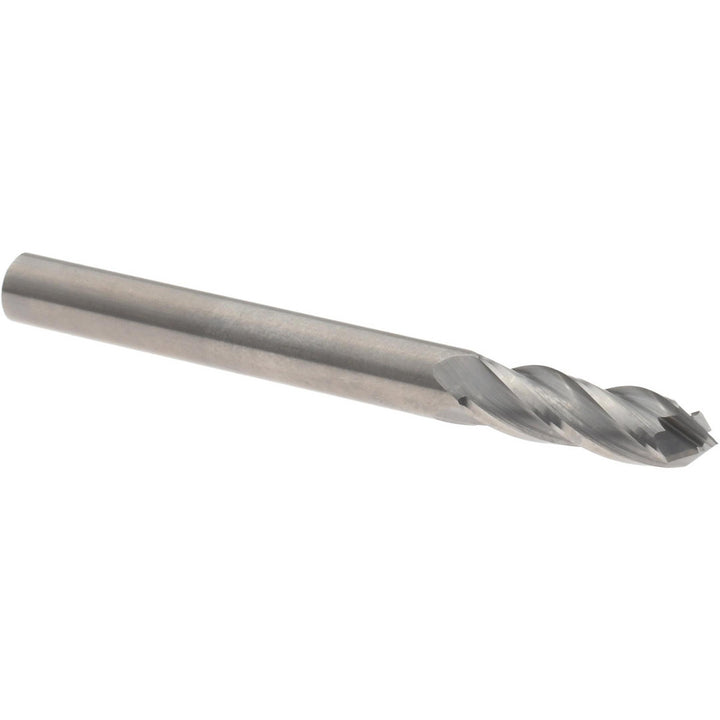

3/16" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11635

Melin Tool

3/16" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11635

MFR# 11635Series CCMG-__-DP

$22.24List $28.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Melin Tool 11635 is a 3/16 4-flute Solid Carbide (Micrograin) drill mills end mill. 5/8 length of cut, 2 overall length. Series CCMG-__-DP.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in5/8
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Point angle90
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in3/16
Shank diameter tolerance+0.0000 - -0.0020 in
