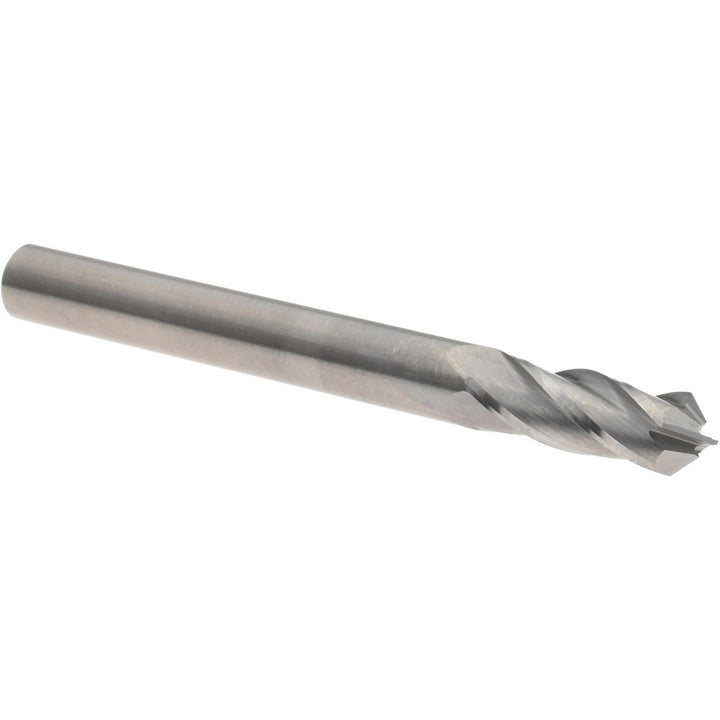

1/4" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11637

Melin Tool

1/4" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11637

MFR# 11637Series CCMG-__-DP

$27.72List $35.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Melin Tool 11637 is a 1/4 4-flute Solid Carbide (Micrograin) drill mills end mill. 3/4 length of cut, 2-1/2 overall length. Series CCMG-__-DP.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Point angle90
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in1/4
Shank diameter tolerance+0.0000 - -0.0020 in
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
