5/8" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 12196

Melin Tool

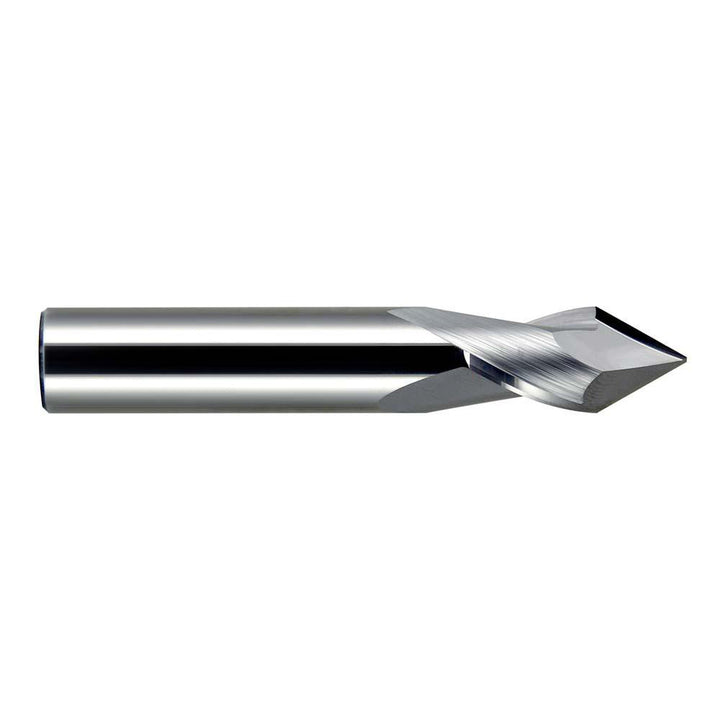

5/8" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 12196

MFR# 12196Series AMG-__-DP60

$144.38List $185.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 12196 is a 5/8 2-flute Solid Carbide (Micrograin) drill mills end mill. 1-1/4 length of cut, 3-1/2 overall length. Series AMG-__-DP60.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Point angle60
Primary material applicationGroove Milling
Shank diameter in5/8
Shank diameter tolerance+0.0005 - -0.0005 in
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
