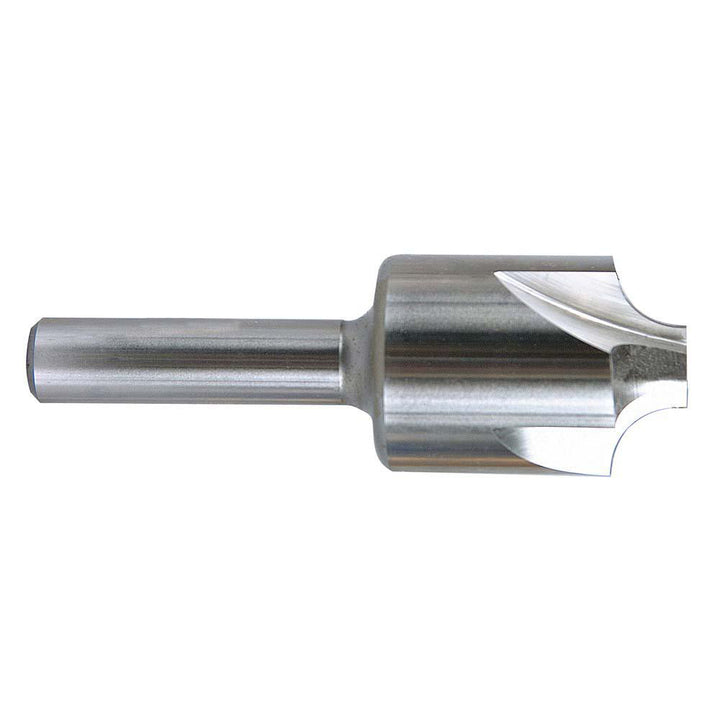

5/8" 4-Flute Cobalt Corner Rounding End Mill - Melin Tool 13066

Melin Tool

5/8" 4-Flute Cobalt Corner Rounding End Mill - Melin Tool 13066

MFR# 13066Series RC

$84.07List $105.95 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialCobalt
CoatingUncoated

Description

The Melin Tool 13066 is a 5/8 4-flute Cobalt (M42) corner rounding end mill. 3 overall length. Series RC.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialCobalt
Helix angle0
Length of cut0.1250
Material gradeM42
Mill diameter in5/8
Number of flutes4
Overall length in3
Radius in1/8
Radius tolerance+0.001 to -0.001
Shank diameter in1/2
Single or double endSingle
Tip diameter in3/8
