Melin Tool

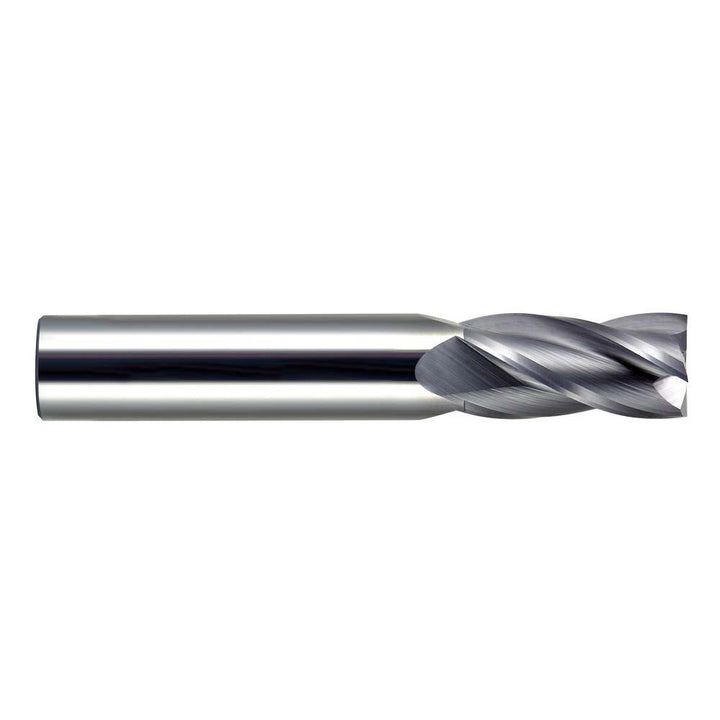

1/8" 4-Flute Square End Mill - Melin Tool 14132
MFR# 14132Series CCMG
$10.96List $14.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
Description
The Melin Tool 14132 is a 1/8 4-flute square end mill. 1/2 length of cut, 1.5000 overall length. Series CCMG.
Specifications
Flute typeHelical
Helix angle30
Length of cut in1/2
Length typeStandard
Mill diameter in1/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes4
Overall length1.5000
Shank diameter0.1300
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
