Melin Tool

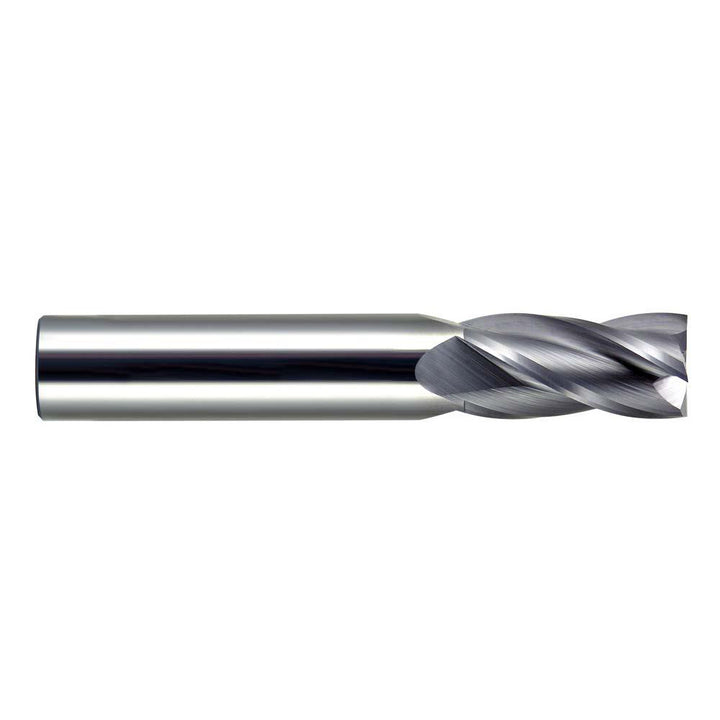

3/4" 4-Flute Square End Mill - Melin Tool 14168
MFR# 14168Series CCMG
$150.62List $193.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
Description
The Melin Tool 14168 is a 3/4 4-flute square end mill. 1-1/2 length of cut, 4.0000 overall length. Series CCMG.
Specifications
Flute typeHelical
Helix angle30
Length of cut in1-1/2
Length typeStandard
Mill diameter in3/4
Mill diameter tolerance+0.0005 to -0.0005 in
Number of flutes4
Overall length4.0000
Shank diameter in3/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
