Melin Tool

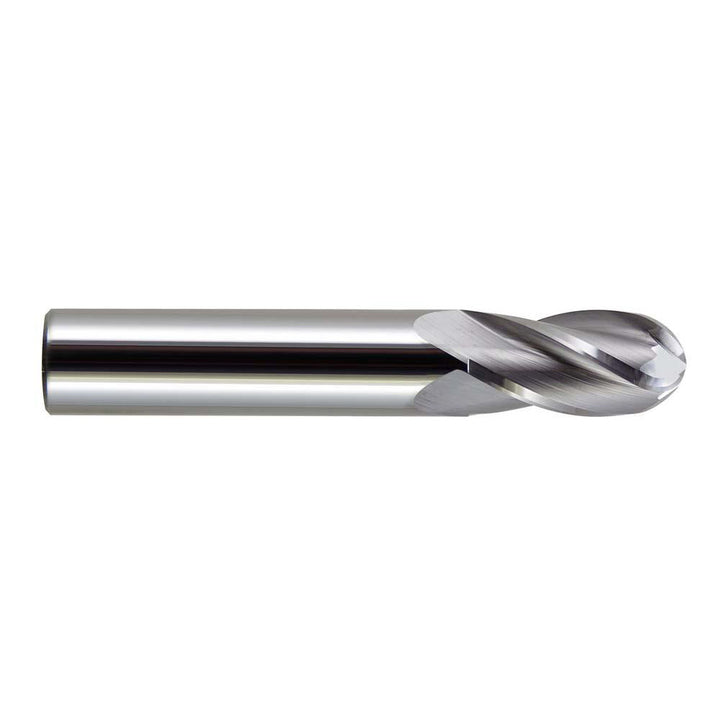

3/8" 4-Flute Solid Carbide Ball End Mill - Melin Tool 14184

MFR# 14184Series CCMG-__-B

$37.50List $48.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Melin Tool 14184 is a 3/8 4-flute Solid Carbide ball end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy, hardened materials. 1 length of cut, 2-1/2 overall length. Series CCMG-__-B.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length typeStandard

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials

Shank diameter in3/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
