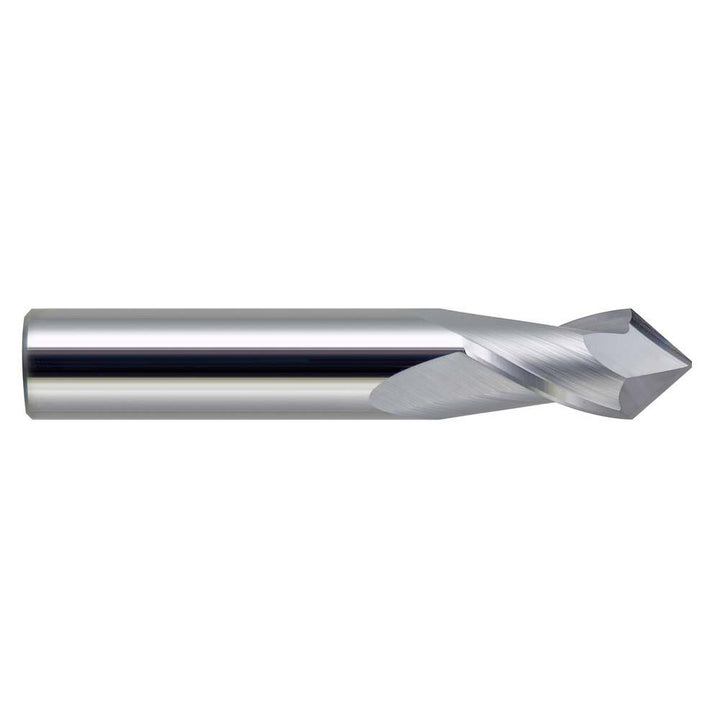

1/2" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 16089

Melin Tool

1/2" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 16089

MFR# 16089Series AMG-__-DP

$75.19List $96.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 16089 is a 1/2 2-flute Solid Carbide (Micrograin) drill mills end mill. 1 length of cut, 3 overall length. Series AMG-__-DP.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3
Point angle90
Primary material applicationGroove Milling
Shank diameter in1/2
Shank diameter tolerance+0.0005 - -0.0005 in
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
