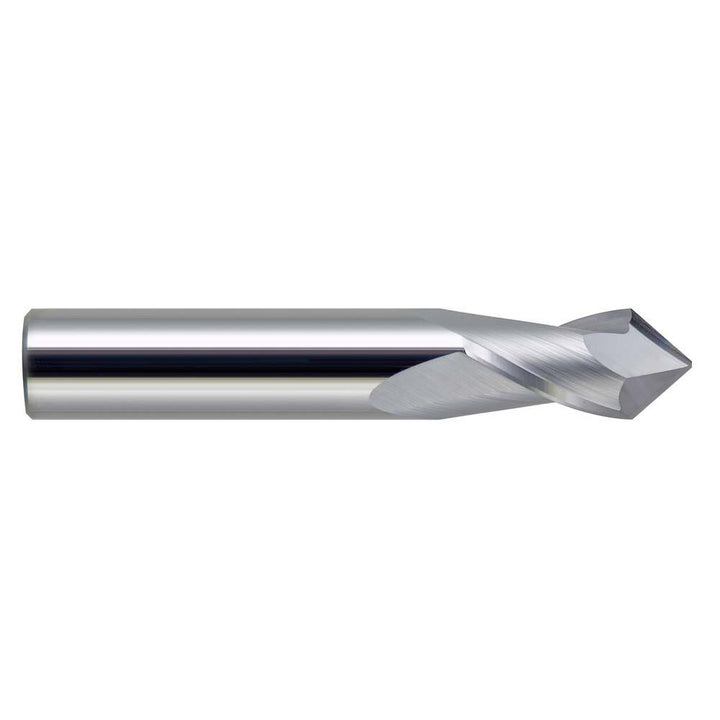

5/8" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 16090

Melin Tool

5/8" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 16090

MFR# 16090Series AMG-__-DP

$146.92List $185.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 16090 is a 5/8 2-flute Solid Carbide (Micrograin) drill mills end mill. 1-1/4 length of cut, 3-1/2 overall length. Series AMG-__-DP.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Point angle90
Primary material applicationGroove Milling
Shank diameter in5/8
Shank diameter tolerance+0.0005 - -0.0005 in
