5/8" 2-Flute Solid Carbide Drill Mill End Mill, TiN - Melin Tool 26090

Melin Tool

5/8" 2-Flute Solid Carbide Drill Mill End Mill, TiN - Melin Tool 26090

MFR# 26090

$165.41List $212.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingTiN

Description

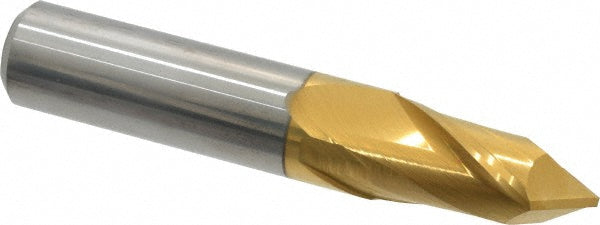

The Melin Tool 26090 is a 5/8 2-flute Solid Carbide (Micrograin) drill mills end mill with a TiN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Point angle90
Shank diameter in5/8
