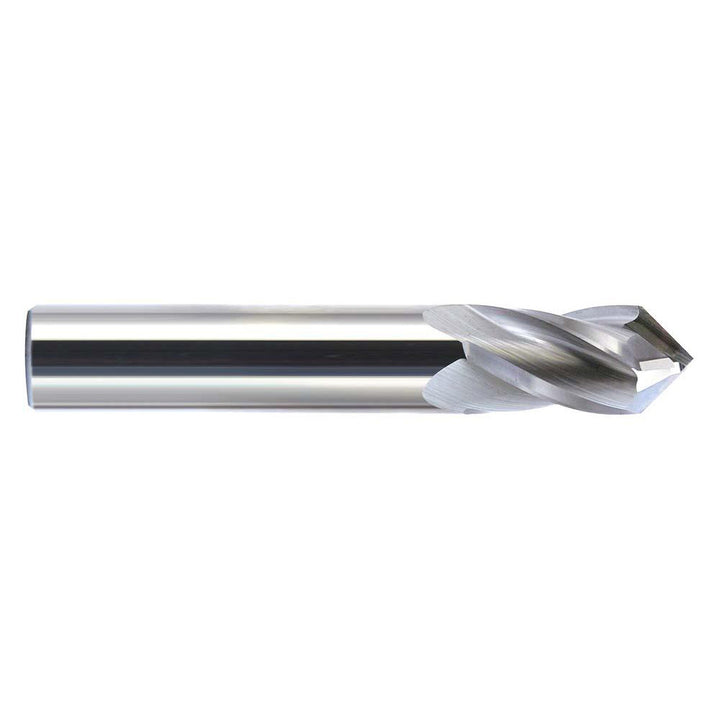

7/16" 4-Flute Solid Carbide Drill Mill End Mill, AlTiN - Melin Tool 51641

Melin Tool

7/16" 4-Flute Solid Carbide Drill Mill End Mill, AlTiN - Melin Tool 51641

MFR# 51641Series CCMG-__-DP

$72.77List $93.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Melin Tool 51641 is a 7/16 4-flute Solid Carbide (Micrograin) drill mills end mill with a AlTiN finish for longer tool life. 1 length of cut, 2-3/4 overall length. Series CCMG-__-DP.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-3/4
Point angle90
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in7/16
Shank diameter tolerance+0.0000 - -0.0020 in
