5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Melin Tool 56187

Melin Tool

5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Melin Tool 56187

MFR# 56187Series CCMG

$31.20List $40.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

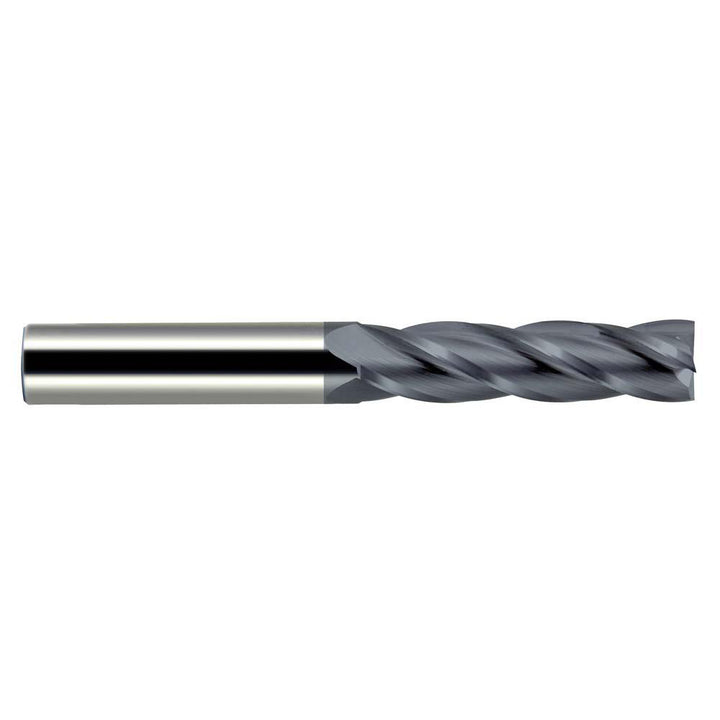

The Melin Tool 56187 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 3 overall length. Series CCMG.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeLong
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
