Michigan Drill

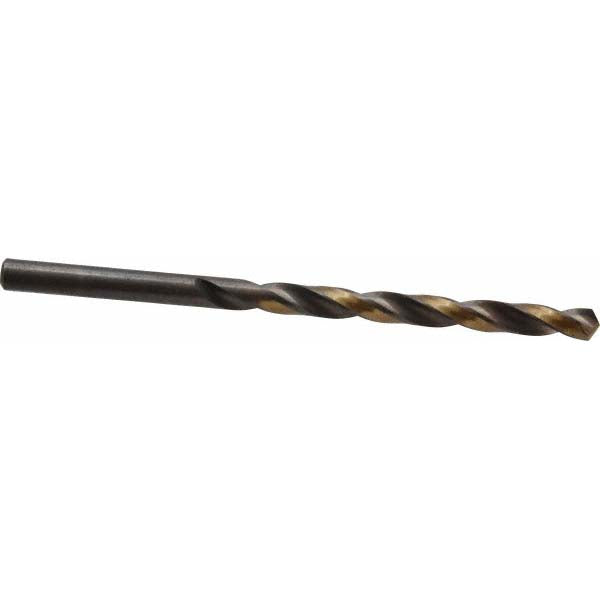

13/64" High Speed Steel Drill Bit, Oxide, 118° point - Michigan Drill 314 13/64
MFR# 314 13/64Series 314
$3.15List $3.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/64
Flutes2
CoatingOxide
Description
The Michigan Drill 314 13/64 is a 13/64" High Speed Steel drill bit with a Oxide finish, 118° point. 2-7/16 flute length, 3-5/8in overall length. Series 314.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Double marginYes
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-7/16
Flute typeSpiral
Maximum drilling depth in2-7/16
Number of flats0
Number of flutes2
Overall length in3-5/8in
Point typeSplit Point
Shank diameter in13/64in
Shank length in1-3/16in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
