Micro 100

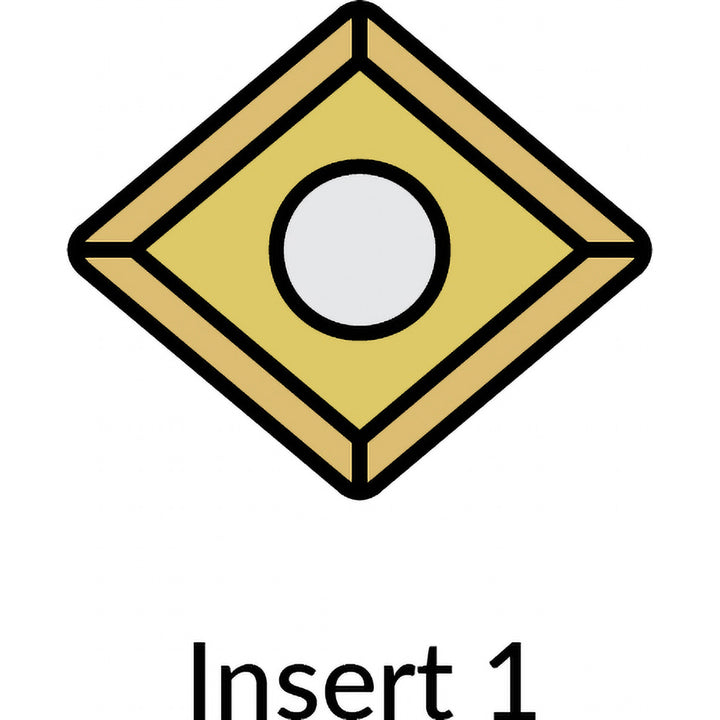

Diamond 80 1/4" IC Carbide Insert - Micro 100 50-1100
MFR# 50-1100Cat# CCMT 21.51Series CCMT
$16.54List $19.31
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
MaterialCarbide
Description
The Micro 100 50-1100 is a carbide indexable insert.
Specifications
Chip breakerFlat Top
Clearance codeC
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle80degree
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Manufacturers catalog numberCCMT 21.51
Maximum depth of cut0.0852
Multi use applicationTurning; Facing; Chamfering; Boring
Multi use toolYes
Number of cutting edges2
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
