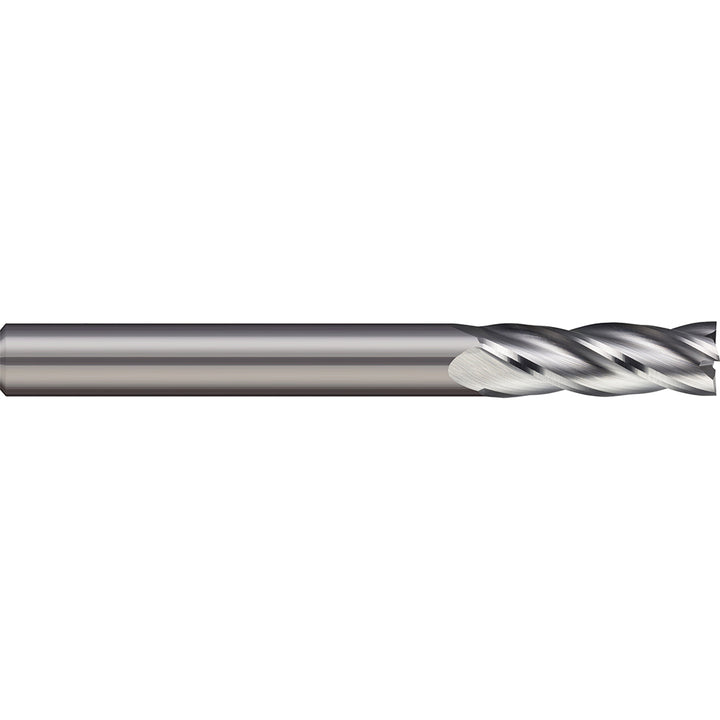

0.0394" 4-Flute Solid Carbide Square End Mill - Micro 100 AEMM-010-4

Micro 100

0.0394" 4-Flute Solid Carbide Square End Mill - Micro 100 AEMM-010-4

MFR# AEMM-010-4Series AEMM

$22.38List $23.82 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Micro 100 AEMM-010-4 is a 0.0394 4-flute Solid Carbide square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 0.1575 length of cut. Series AEMM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1575
Length of cut range0.1000 - 0.2000
Mill diameter0.0394
Number of flutes4
Overall length (mm)50.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.1575
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
