Micro 100
3/16" Solid Carbide Drill Bit, 118° point - Micro 100 DR-187-2
MFR# DR-187-2Series DR
$38.82List $41.31
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description

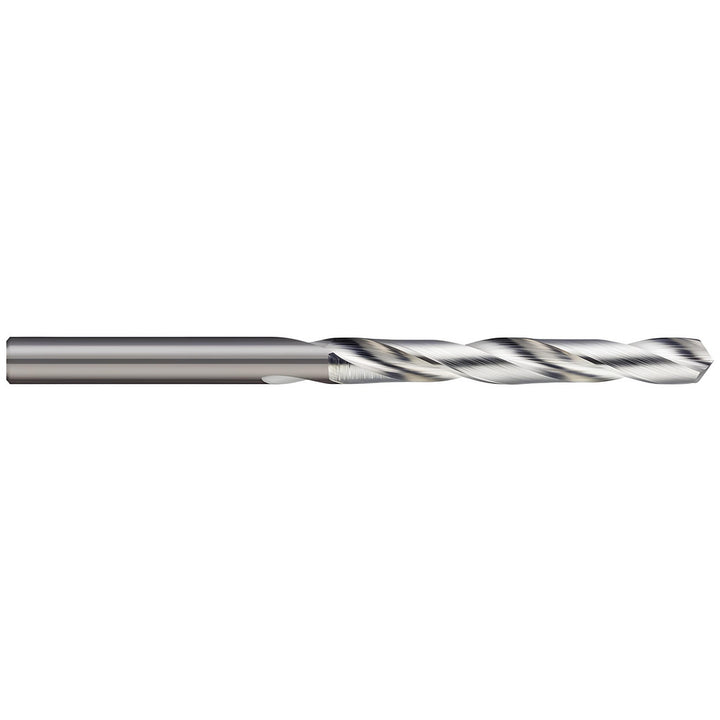

The Micro 100 DR-187-2 is a 3/16" Solid Carbide drill bit, 118° point. 1-5/8 flute length, 2-3/4 overall length. Series DR.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length in1-5/8
Flute typeSpiral
Maximum drilling depth in1-5/8
Number of flats0
Number of flutes2
Overall length in2-3/4
Point typeStandard
Shank diameter in3/16
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationHolemaking
Tool performanceGeneral Purpose
