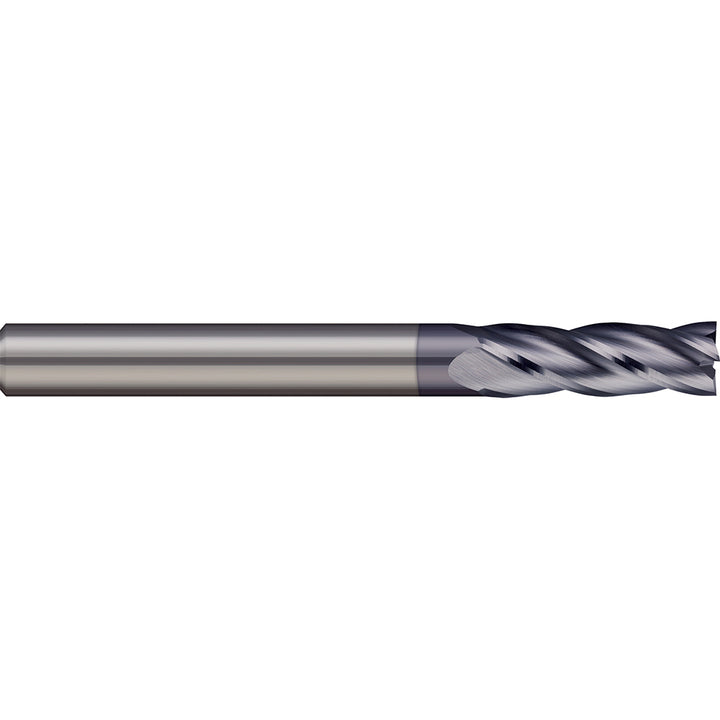

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 GEM-250-4X

Micro 100

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 GEM-250-4X

MFR# GEM-250-4X

$48.95List $57.15 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Micro 100 GEM-250-4X is a 1/4 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Mill diameter in1/4
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
