Micro 100

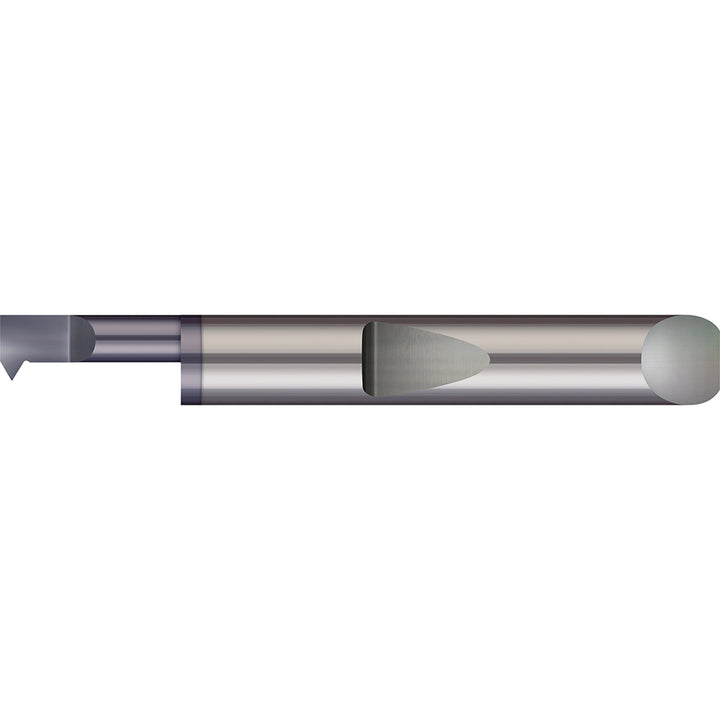

Single Point Threading Tools - Micro 100 QIT-140500X
MFR# QIT-140500X
$63.18List $73.76
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingAlTiN
Description
The Micro 100 QIT-140500X single point threading tools.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting depth0.5000
MaterialSolid Carbide
Maximum threads per inch56
Minimum threads per inch16
Overall length in1-1/2
Profile angle60
Projection from edge0.0350
Shank diameter in3/16
Threading diameter0.1406
Thread typeInternal
