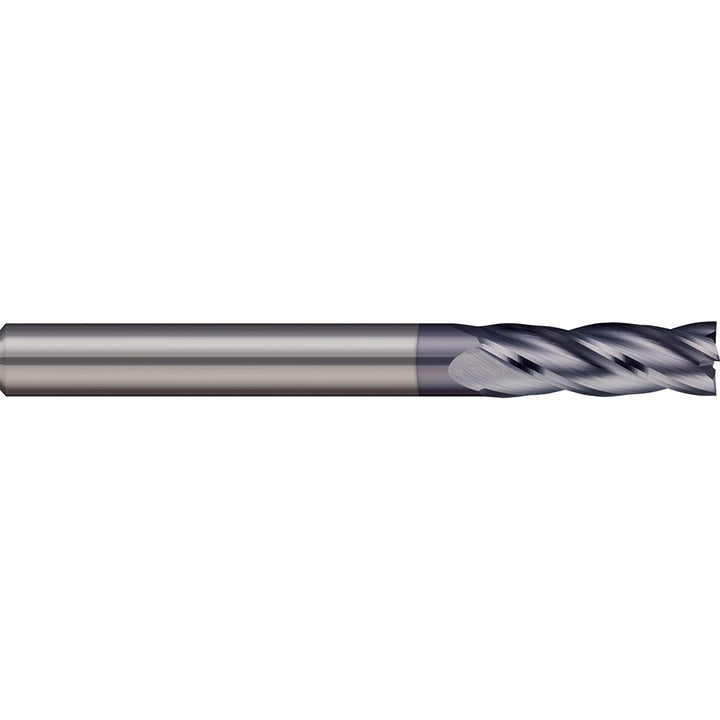

15/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 SEM-234-04X

Micro 100

15/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 SEM-234-04X

MFR# SEM-234-04X

$33.01List $35.14 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Micro 100 SEM-234-04X is a 15/64 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 7/16 length of cut, 2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Mill diameter in15/64
Number of flutes4
Overall length in2
Shank diameter in1/4
Variable helixNo
Variable indexNo
