Micro 100

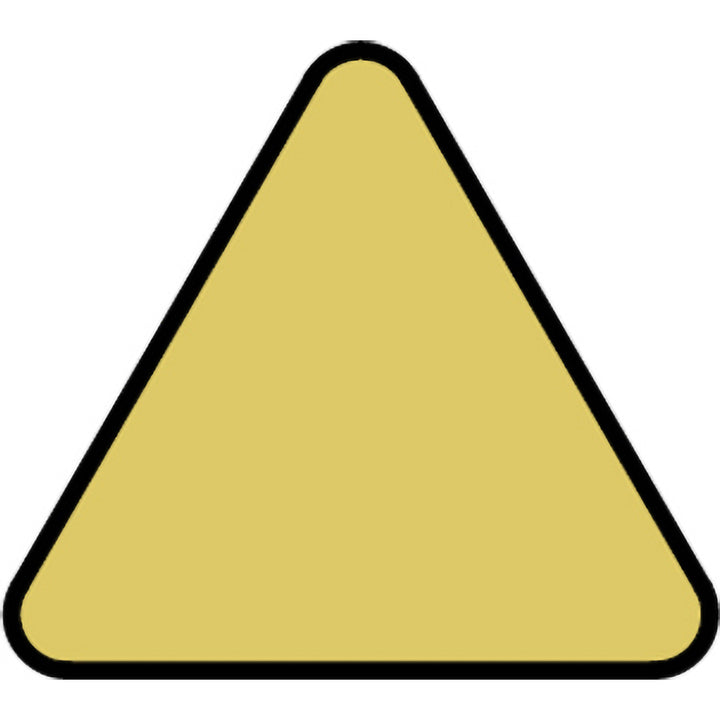

T - Triangle 3/8" IC Carbide Insert - Micro 100 TPG-322
MFR# TPG-322ISO/ANSI# TPG160308Series TPG
$17.44List $20.35
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
MaterialCarbide
Description
The Micro 100 TPG-322 is a carbide indexable insert.
Specifications
Ansi insert codeTPG322
Ansi size code322
Chip breakerFlat Top
Clearance codeP
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.5324
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG160308
Iso size code160308
Length range0.5000 - 0.6000
Manufacturers catalog numberTPG-322
Maximum depth of cut0.1773
Multi use applicationBoring
Multi use toolNo
Number of cutting edges3
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.5324
Wiper edgeNo
