Millstar
3/8in" 4-Flute Solid Carbide Ball End Mill, HSN - Millstar BI4T0375HSN
MFR# BI4T0375HSNCat# BI4T-.375Series BI4T
$81.62List $102.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingHSN
Description

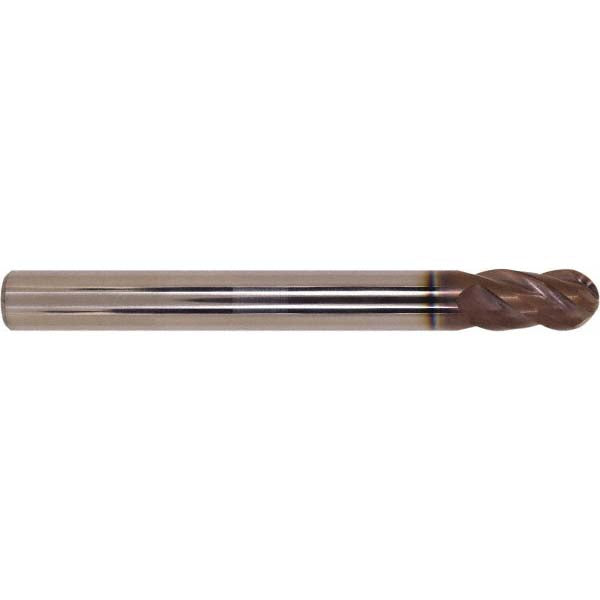

The Millstar BI4T0375HSN is a 3/8in 4-flute Solid Carbide (Submicron) ball end mill with a HSN finish for longer tool life. Suited for hard material. 3/4in length of cut, 3-1/2in overall length. Series BI4T.
Specifications
ChipbreakerNo
Coating finishHSN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in3/4in
Length typeStandard
Manufacturers catalog numberBI4T-.375
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0004 in
Neck length0.0000
Nose radius0.1875
Number of flutes4
Overall length in3-1/2in
Primary workpiece materialHard Material
Reach length0.7500
Shank diameter in3/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
