Mitee-Bite

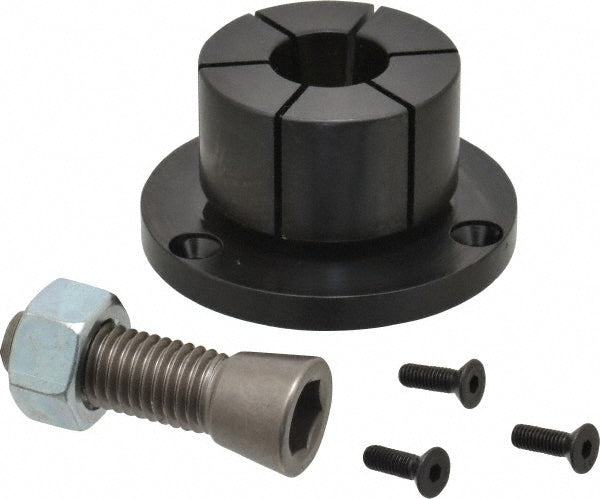

Fixturing Clamp - Mitee-Bite 31350
MFR# 31350
$86.52List $102.10
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitee-Bite 31350 is a mild steel fixturing clamp.
Specifications
Center screw thread size5/8-11
Expansion height1.0600
Flange diameter2.9720
Flange thickness0.3100
Height above flange1.2500
Holding force10000lb
Holding force lb10000
MaterialMild Steel
Maximum expansion diameter2.0300
Minimum expansion diameter1.1500
Mounting screw thread size10-32
Mount hole diameter2.5150
Number of mount holes3
Overall height1.5600
Thread length below base0.7900
Torque ft lb224.00
