Mitee-Bite
Fixturing Clamp - Mitee-Bite 60050
MFR# 60050
$21.33List $24.70
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

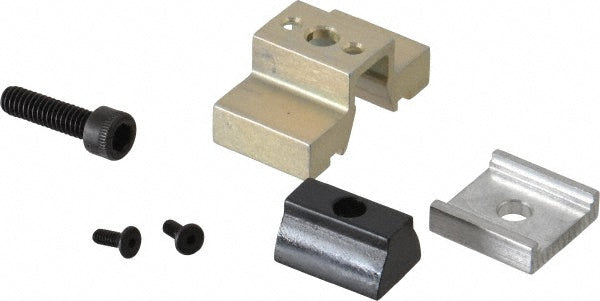

The Mitee-Bite 60050 is a fixturing clamp.
Specifications
Base depth0.4200
Base height0.5000
Base width in1.1250
Clearance width1.1250
Distance between centers0.4000 in
FeaturesClamping Force Spreads Uniformly; Unique Locking Plate
Height13.4300
Holding force lb500.00
IncludesLocking Plate; Mounting Screw
MachinableYes
Overall depth0.6200
Overall width1.1250
Projection from base0.2500
Screw thread size8-32
Single double wedgeSingle
Torque ft lb2.50
Wedge clamp styleT-Slot
