Mitsubishi

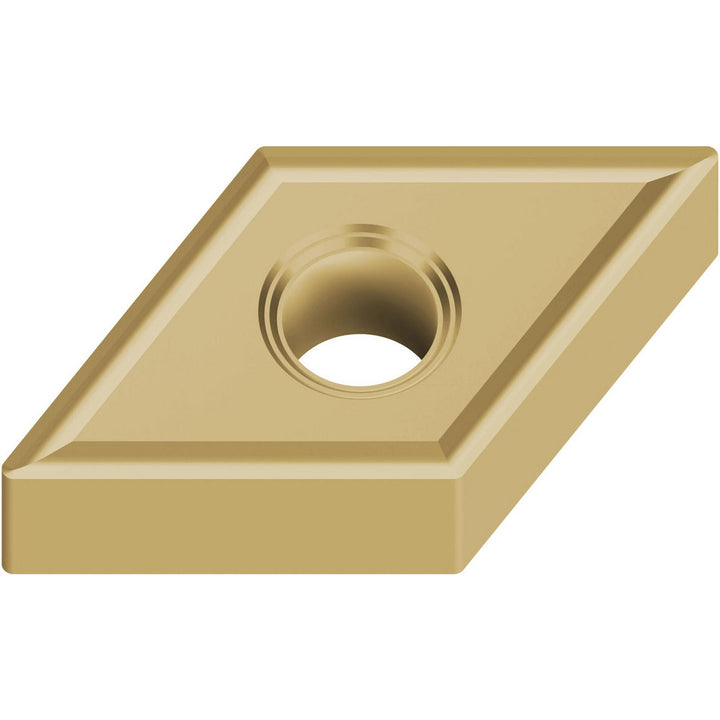

Rhombic 55 1/2" IC Carbide Insert, Grade US735, CVD - Mitsubishi 101852
MFR# 101852
$25.99List $33.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic 55
GradeUS735
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 101852 is a carbide indexable insert, grade US735, CVD coated. Suited for stainless steel.
Specifications
Chip breakerMS
Clearance codeN
Coating finishCVD
Coating processCVD
Corner radius0.0315
Full radiusNo
Included angle55.00
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic 55
Insert size code4
Insert styleDNMG
Insert thickness in3/16
Manufacturer gradeUS735
Number of cutting edges4
Primary workpiece materialStainless steel
RakeNegative
Rake angle0
Relief angle0.000
Tolerance codeM
Wiper edgeNo
