Mitsubishi
0.0860" Solid Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 10531877
MFR# 10531877Series MVS
$140.03List $179.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

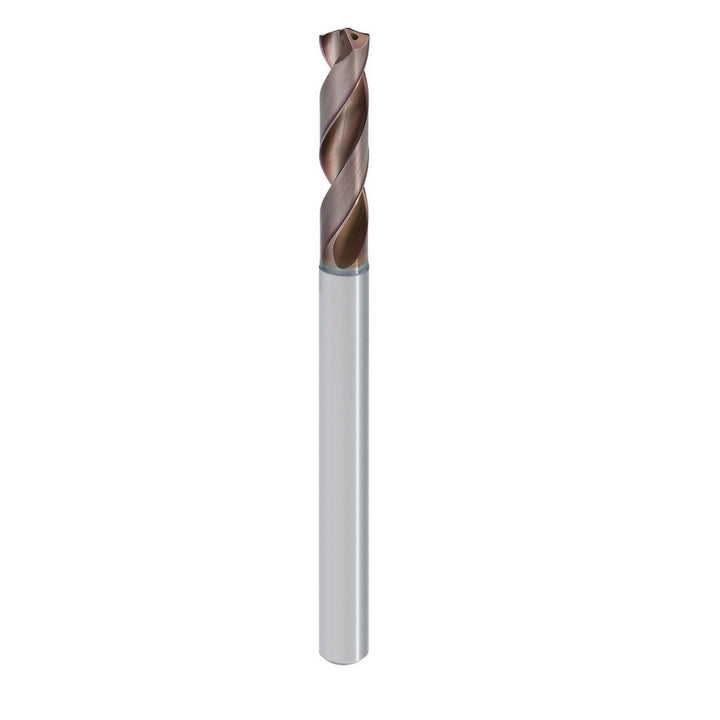

The Mitsubishi 10531877 is a 0.0860" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0860
Drill point angle140
Flute by diameter ratio7xD
Flute length0.8820
Flute typeSpiral
Maximum drilling depth0.6180
Number of flutes2
Overall length2.9290
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hardened Steel; Copper; Cast Iron; Carbon Steel; Brass; Aluminum; Aluminum Alloy
Shank diameter0.1180
Shank length1.9880
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
