Mitsubishi

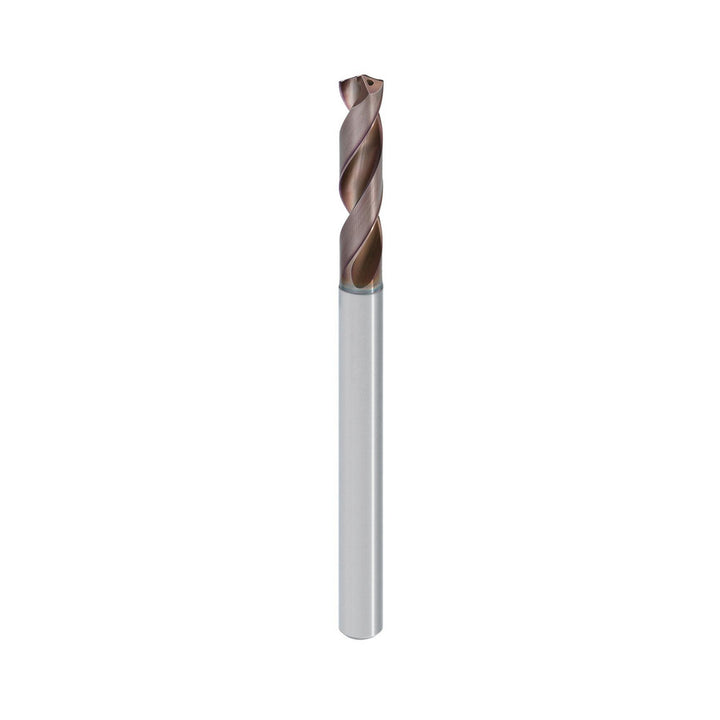

1/8" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 10543467
MFR# 10543467Series MVS
$275.33List $335.32
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiAlN
Description
The Mitsubishi 10543467 is a 1/8" Carbide drill bit with a TiAlN finish, 140° point. Suited for alloy steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size in1/8
Drill point angle140
Drill point length0.0230
Flute by diameter ratio15xD
Flute length2.5040
Flute typeHelical
Material grade1020
Maximum drilling depth1.8990
Number of flutes2
Overall length4.5110
Point typeX-Thinning
Primary workpiece materialAlloy Steel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Nickel Alloy; Nickel; Iron; High Strength Bronze; Hard Material; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass
Shank diameter0.2362
Shank length1.7720
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationDeep Hole Drilling; Cross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web thinningX-Thinned
