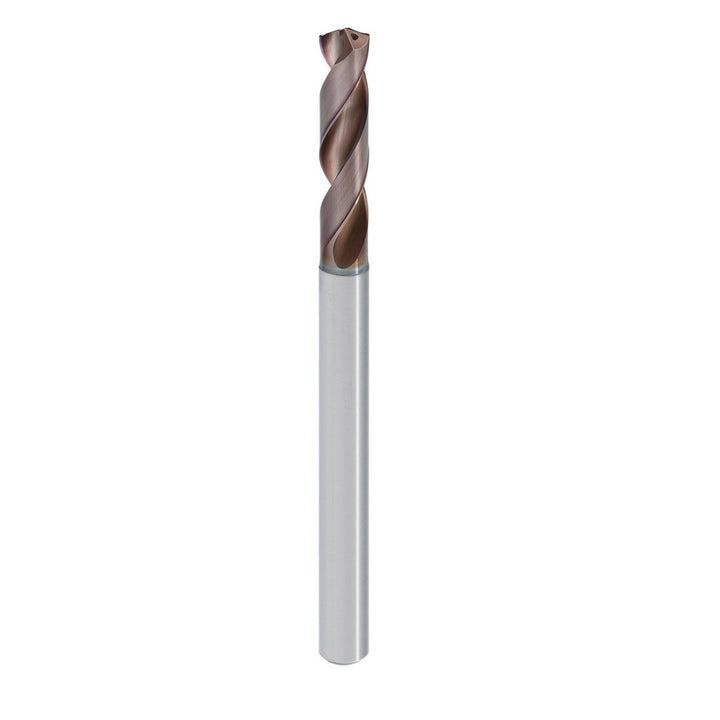

9/64" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 10543474
MFR# 10543474Series MVS
$275.33List $335.32
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiAlN
Description
The Mitsubishi 10543474 is a 9/64" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size in9/64
Drill point angle140
Drill point length0.0260
Flute by diameter ratio15xD
Flute length2.8620
Flute typeHelical
Maximum drilling depth2.1370
Number of flutes2
Overall length4.8680
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Iron; High Strength Bronze; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass; Aluminum; Aluminum Alloy
Shank diameter0.236
Shank length1.7870
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationDeep Hole Drilling; Cross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
