Mitsubishi

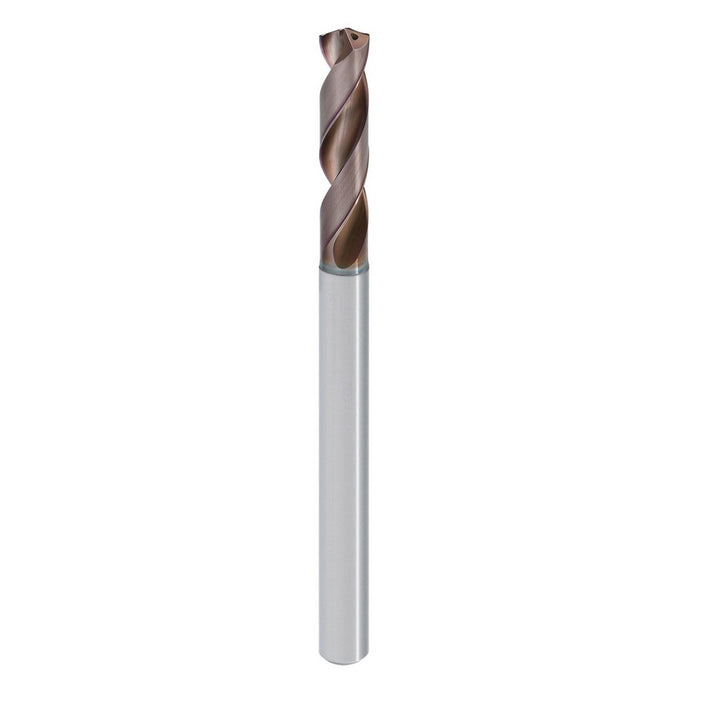

0.2087" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 10548585
MFR# 10548585Series MVS
$380.57List $463.49
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 10548585 is a 0.2087" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size0.2087
Drill point angle140
Drill point length0.0394
Flute by diameter ratio15xD
Flute length3.9370
Flute typeHelical
Maximum drilling depth3.1693
Number of flutes2
Overall length6.1024
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Iron; High Strength Bronze; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass; Aluminum; Aluminum Alloy
Shank diameter0.2362
Shank length2.0472
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationDeep Hole Drilling; Cross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
