Mitsubishi

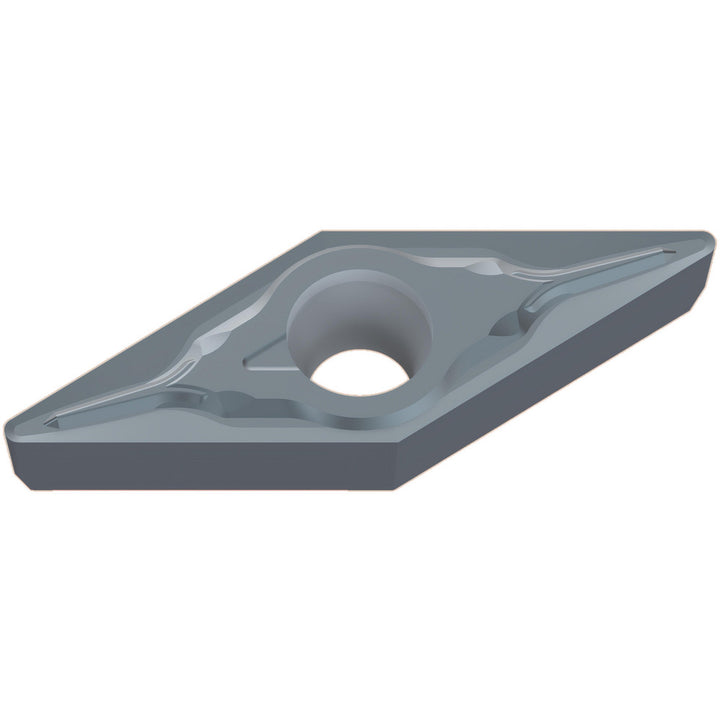

Rhombic 1/4" IC Carbide Insert, Grade MP9015, PVD - Mitsubishi 10576571
MFR# 10576571
$26.95List $34.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRhombic
GradeMP9015
MaterialCarbide
CoatingPVD
Description
The Mitsubishi 10576571 is a carbide indexable insert, grade MP9015, PVD coated.
Specifications
Chip breakerLS
Clearance codeC
Coating finishPVD
Corner radius0.0079
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic
Insert size code2
Insert styleVCGT
Insert thickness in1/8
Manufacturer gradeMP9015
Number of cutting edges2
Relief angle7.000
Tolerance codeG
