Mitsubishi

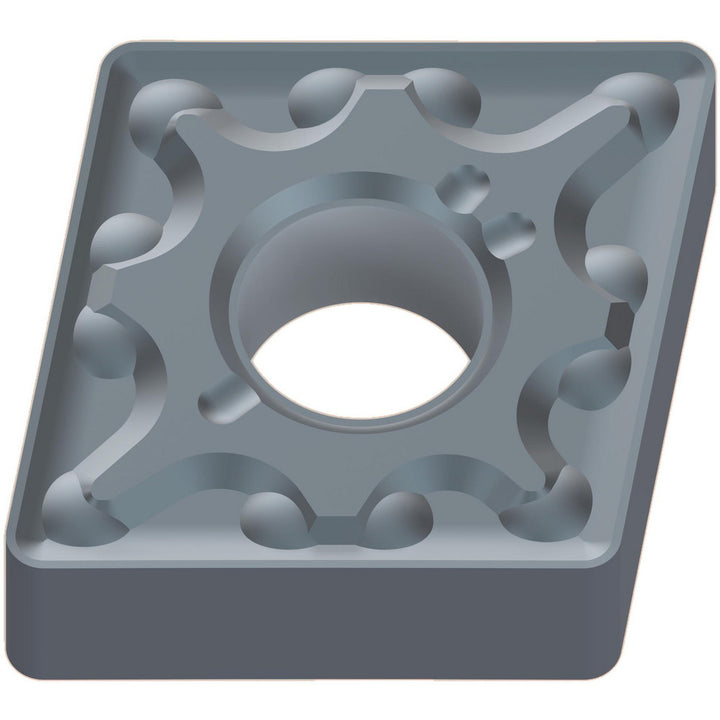

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade MP9025, PVD - Mitsubishi 10600726
MFR# 10600726ISO/ANSI# CNMG120408
$15.27List $19.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeMP9025
MaterialCarbide
CoatingPVD
Description
The Mitsubishi 10600726 is a carbide indexable insert, grade MP9025, PVD coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerMA
Chip breaker operationMedium Machining
Clearance codeN
Coating finishPVD
Corner radius in1/32
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeMP9025
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
