Mitsubishi

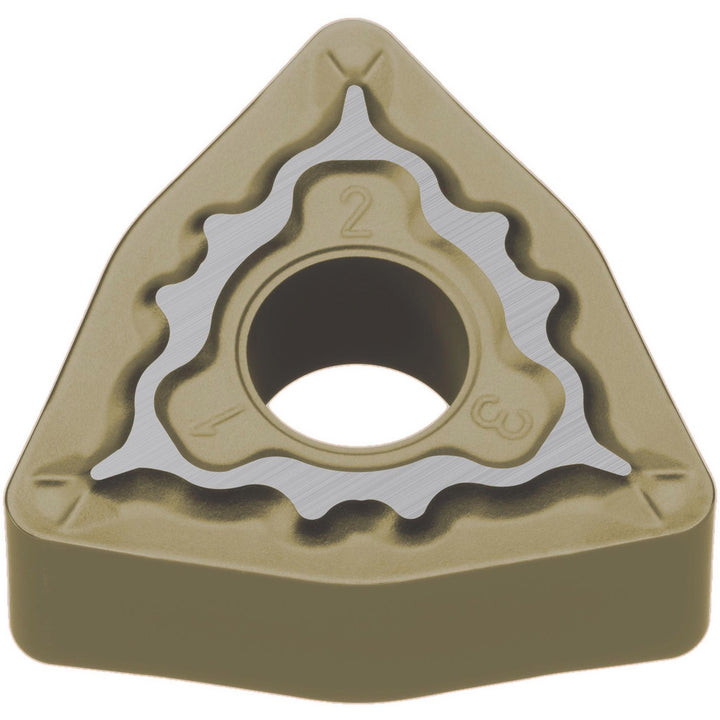

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade US735, CVD - Mitsubishi 109166
MFR# 109166ISO/ANSI# WNMG080402
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeUS735
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 109166 is a carbide indexable insert, grade US735, CVD coated.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerMS
Chip breaker operationMedium Machining
Clearance codeN
Coating finishCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code4
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080402
Iso size code080402
Manufacturer gradeUS735
Number of cutting edges6
Relief angle0
Side clearanceNegative
Tolerance codeM
