Mitsubishi

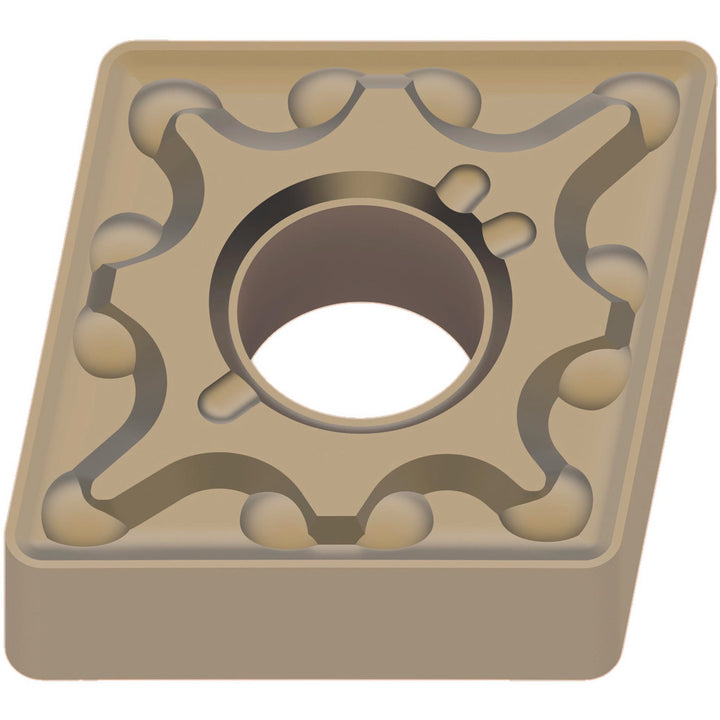

Rhombic 80 1/2" IC Carbide Insert, Grade US7020, CVD - Mitsubishi 135044
MFR# 135044
$16.50List $21.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic 80
GradeUS7020
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 135044 is a carbide indexable insert, grade US7020, CVD coated.
Specifications
Chip breakerMA
Clearance codeN
Coating finishCVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic 80
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Manufacturer gradeUS7020
Number of cutting edges4
Relief angle0.000
Tolerance codeM
