Mitsubishi

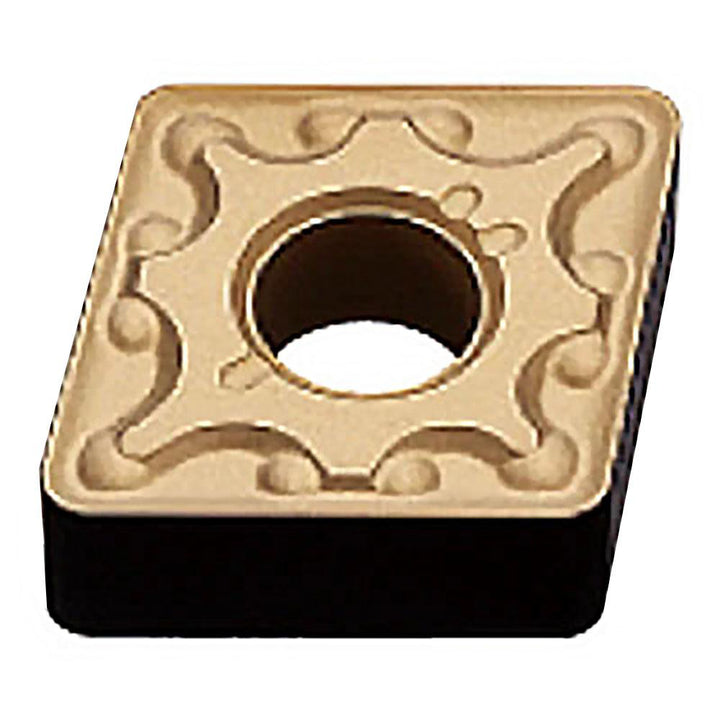

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade US7020, Al2O3 - Mitsubishi 135079
MFR# 135079ISO/ANSI# CNMG120408
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeUS7020
MaterialCarbide
CoatingAl2O3
Description
The Mitsubishi 135079 is a carbide indexable insert, grade US7020, Al2O3 coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerG
Clearance codeN
Coating finishAl2O3
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeUS7020
Material gradeC5; C6
Relief angle0
Side clearanceNegative
Tolerance codeM
