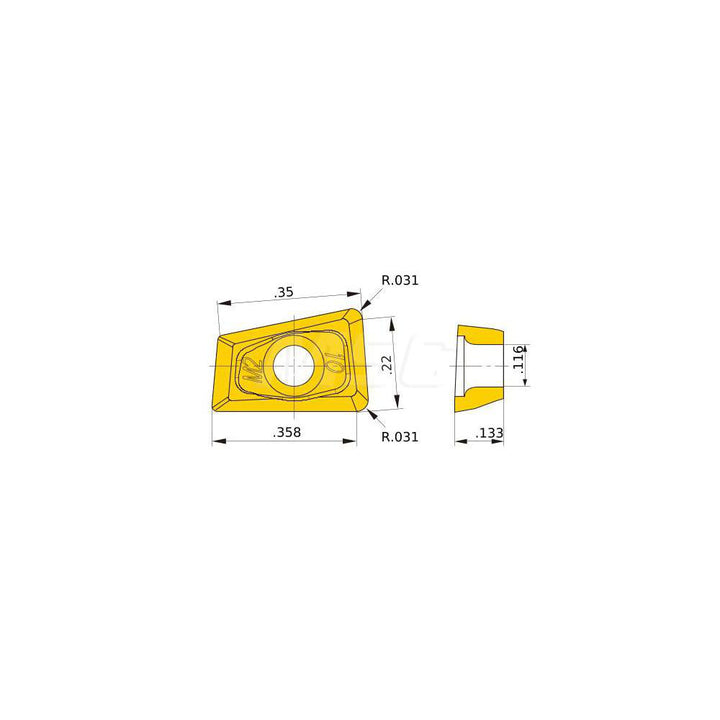

QOMT0934R-M2 Solid Carbide Insert, Grade VP15TF, AlTiN - Mitsubishi 189958
MFR# 189958ISO/ANSI# QOMT0934R-M2Cat# QOMT0934R-M2Series QOMT
$19.04List $24.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeVP15TF
MaterialSolid Carbide
CoatingAlTiN
Description
The Mitsubishi 189958 is a QOMT0934R-M2 solid carbide indexable insert, grade VP15TF, AlTiN coated. Suited for cast iron, stainless steel, steel.
Specifications
Ansi codeQOMT0934R-M2
Chip breakerM2
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge effective length0.3580
Hole diameter0.1161
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code0934
Insert styleQOMT
Iso codeQOMT0934R-M2
Length0.3580
Manufacturers catalog numberQOMT0934R-M2
Manufacturer gradeVP15TF
Material applicationCast Iron; Stainless Steel; Steel; Hard Material; Superalloys & Titanium
Multi use toolNo
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Secondary workpiece materialHard Material; Superalloys; Titanium
Single or double sided insertSingle
StandardsISO
Thickness0.1340
