Mitsubishi

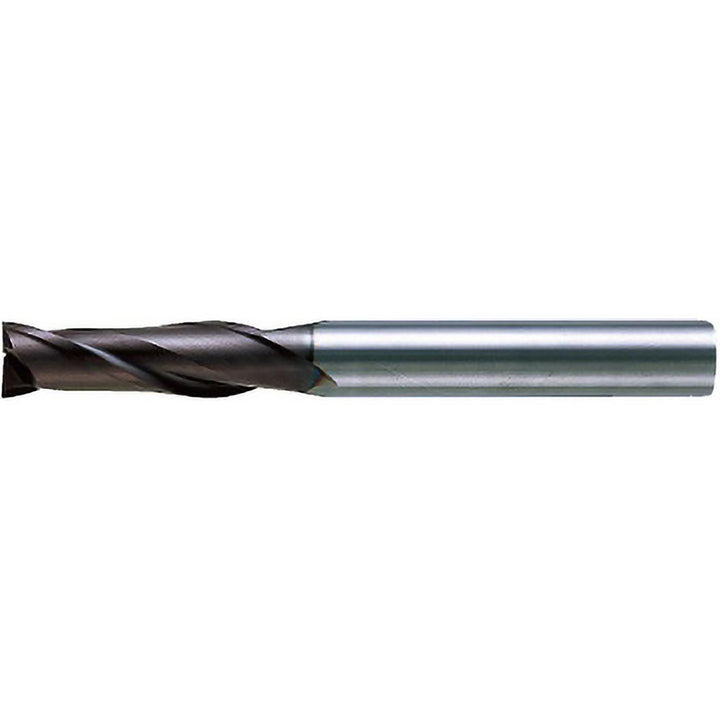

0.0197" 2-Flute Solid Carbide Square End Mill, AlTiN - Mitsubishi 218528
MFR# 218528Series M-Star Endmill MS2JS
$28.92List $35.22
Save 17%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiN
Description
The Mitsubishi 218528 is a 0.0197 2-flute Solid Carbide (Carbide) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.0591 length of cut, 1.5748 overall length. Series M-Star Endmill MS2JS.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut0.0591
Length typeMedium
Material gradeCarbide
Mill diameter0.0197
Mill diameter tolerance-0.020; 0
Neck length0.0591
Number of flutes2
Overall length1.5748
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Secondary workpiece materialHardened Materials; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.1575
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
