Mitsubishi

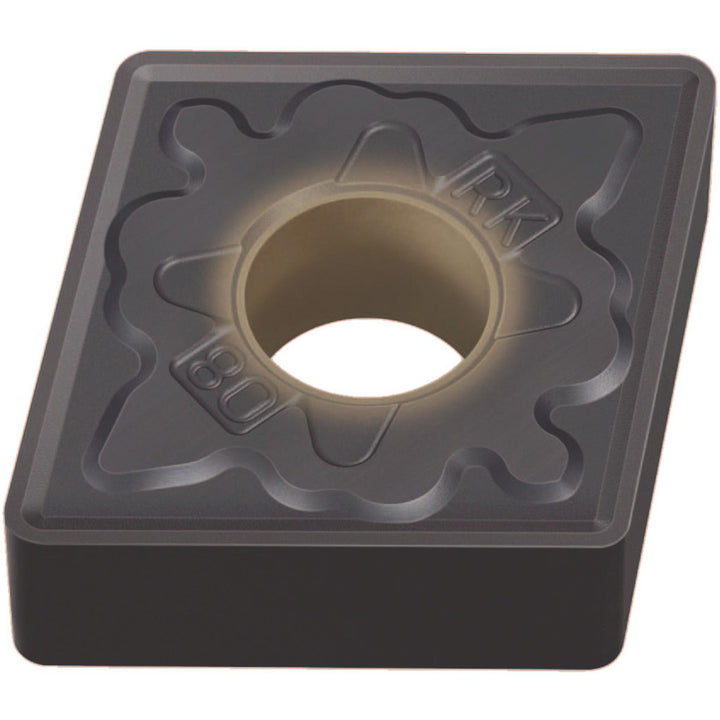

Rhombic 80 5/8" IC Carbide Insert, Grade MC5125, CVD - Mitsubishi 22905581
MFR# 22905581ISO/ANSI# CNMG
$29.53List $37.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeRhombic 80
GradeMC5125
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 22905581 is a carbide indexable insert, grade MC5125, CVD coated. Suited for cast iron.
Specifications
Ansi insert codeCNMG
Chip breakerRK
Clearance codeN
Coating finishCVD
Coating processCVD
Corner radius0.0472
Full radiusNo
Included angle80.00
Inscribed circle in5/8
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic 80
Insert size code5
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG
Manufacturer gradeMC5125
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0.000
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
