Mitsubishi

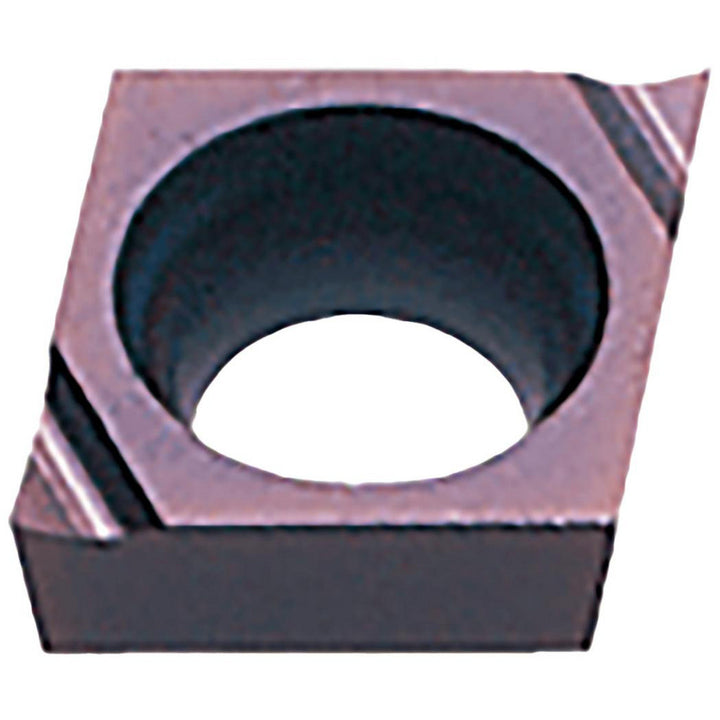

CCGT04T002L-F Carbide Insert, Grade VP15TF, AlTiN - Mitsubishi 229331
MFR# 229331ISO/ANSI# CCGT04T002Cat# CCGT04T002L-FSeries CCGT
$26.51List $34.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC11/64
ShapeC - Diamond (Rhombic) 80-Deg
GradeVP15TF
MaterialCarbide
CoatingAlTiN
Description
The Mitsubishi 229331 is a CCGT04T002L-F carbide indexable insert, grade VP15TF, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi insert codeCCGT04T002
Ansi size code04T002
Chip breakerLF
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.0940
Included angle80
Inscribed circle in11/64
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code04T002
Insert styleCCGT
Insert thickness0.0700
Iso codeCCGT04T002L-F
Iso insert codeCCGT04T002
Iso size code04T002
Manufacturers catalog numberCCGT04T002L-F
Manufacturer gradeVP15TF
Material gradeP15; P35; M15; M35; K15; K35; S10; S30
Maximum depth of cut0.0000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Wiper edgeNo
