Mitsubishi

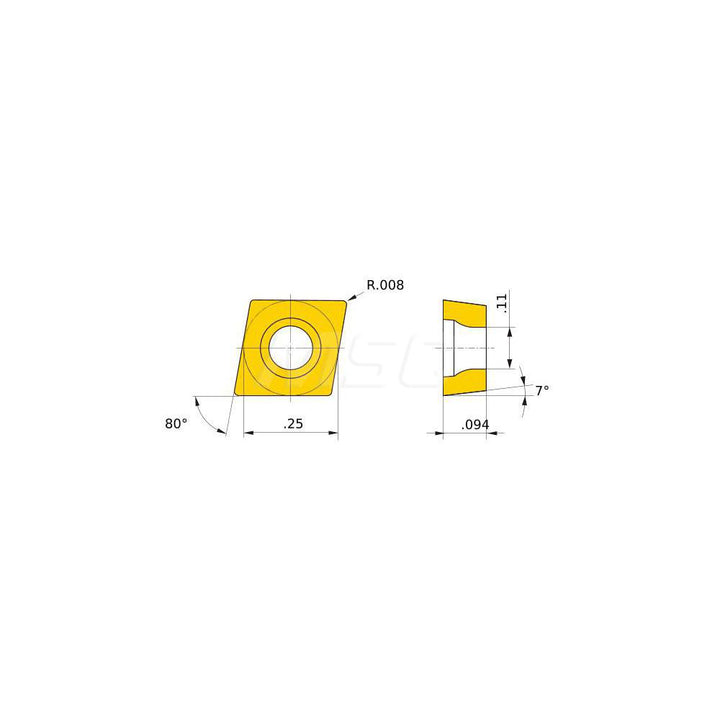

CCGT060202-FJ Carbide Insert, Grade VP10RT, AlTiN - Mitsubishi 251256
MFR# 251256ISO/ANSI# CCGT060202Cat# CCGT21.50.5FJSeries CCGT
$19.16List $24.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeVP10RT
MaterialCarbide
CoatingAlTiN
Description
The Mitsubishi 251256 is a CCGT060202-FJ carbide indexable insert, grade VP10RT, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi insert codeCCGT21.50.5
Ansi size code21.50.5
Chip breakerFJ
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202-FJ
Iso insert codeCCGT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog numberCCGT21.50.5FJ
Manufacturer gradeVP10RT
Material gradeP05; P25; M05; M25; K05; K25; S05; S10
Maximum depth of cut0.0852
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
