Mitsubishi

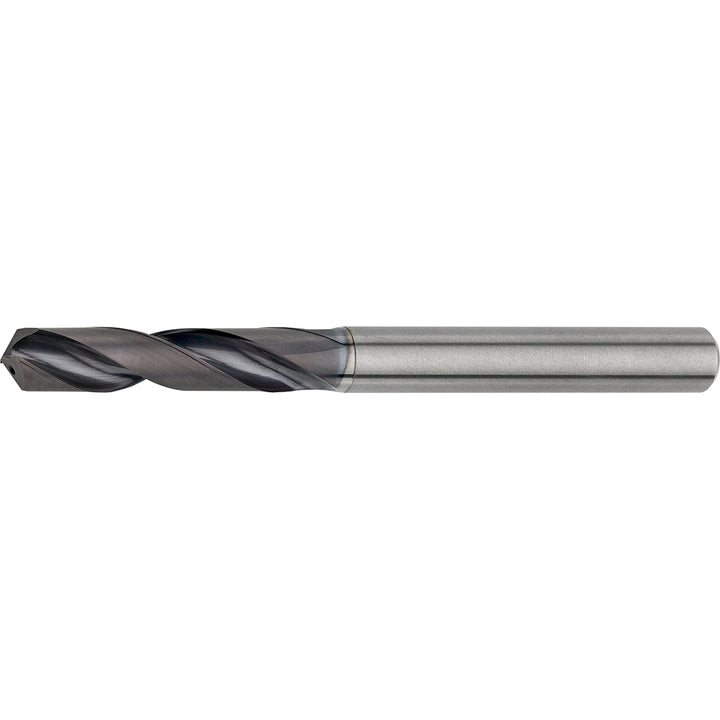

0.0250" Solid Carbide Drill Bit, TiAlN, 135° point - Mitsubishi 388851
MFR# 388851Series MWS
$199.23List $242.63
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 388851 is a 0.0250" Solid Carbide drill bit with a TiAlN finish, 135° point. Suited for steel. Series MWS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0250
Drill point angle135
Flute by diameter ratio12xD
Flute length0.6350
Flute typeSpiral
Maximum drilling depth0.3050
Number of flutes2
Overall length1.8560
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Brass; Bronze Alloy; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hard Material; Hardened Materials; Hardened Steel; High Temperature Alloys; Iron Alloy; Magnesium; Nickel; Nickel Alloy; Soft Metal; Special Alloy
Shank diameter in1/8
Shank length1.0350
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling; Deep Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
