Mitsubishi

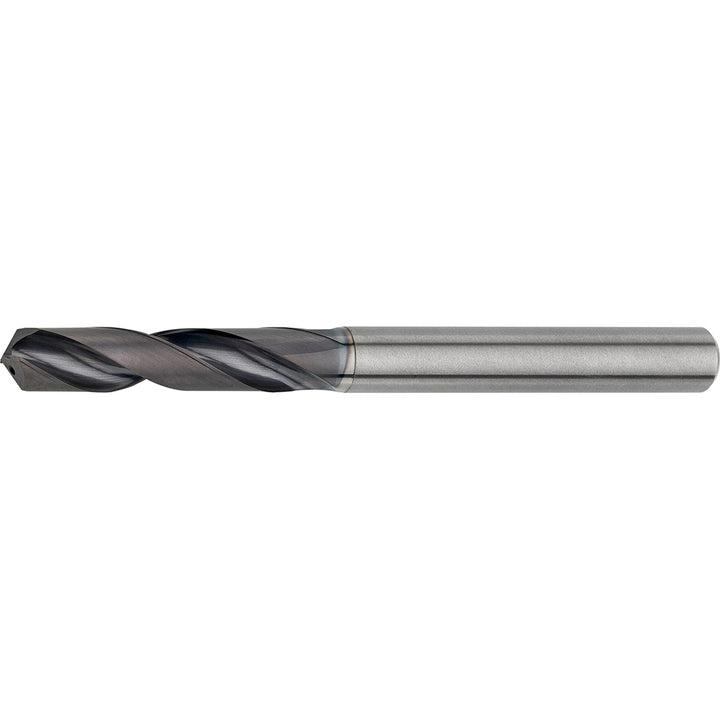

1/32" Solid Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 459487
MFR# 459487Series MWS
$119.46List $153.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/32
Flutes2
CoatingTiAlN
Description
The Mitsubishi 459487 is a 1/32" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MWS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in1/32
Drill point angle140
Flute by diameter ratio1xD
Flute length0.1590
Flute typeSpiral
Maximum drilling depth0.0370
Number of flutes2
Overall length1.9740
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Brass; Bronze Alloy; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hard Material; Hardened Materials; Hardened Steel; High Temperature Alloys; Iron Alloy; Magnesium; Nickel; Nickel Alloy; Soft Metal; Special Alloy
Shank diameter in1/8
Shank length1.6420
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
