Mitsubishi

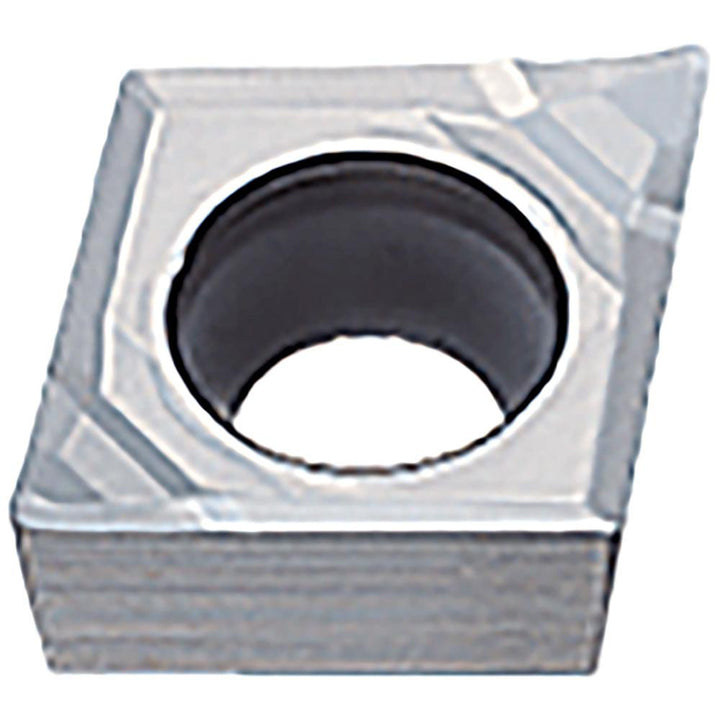

CCGT09T304-AZ Carbide Insert, Grade HTi10 - Mitsubishi 461472
MFR# 461472ISO/ANSI# CCGT09T304Cat# CCGT32.51AZSeries CCGT
$24.07List $30.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeHTi10
MaterialCarbide
Description
The Mitsubishi 461472 is a CCGT09T304-AZ carbide indexable insert, grade HTi10. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT32.51
Ansi size code32.51
Chip breakerAZ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304-AZ
Iso insert codeCCGT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberCCGT32.51AZ
Manufacturer gradeHTi10
Material gradeN10; N20
Maximum depth of cut0.1272
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
