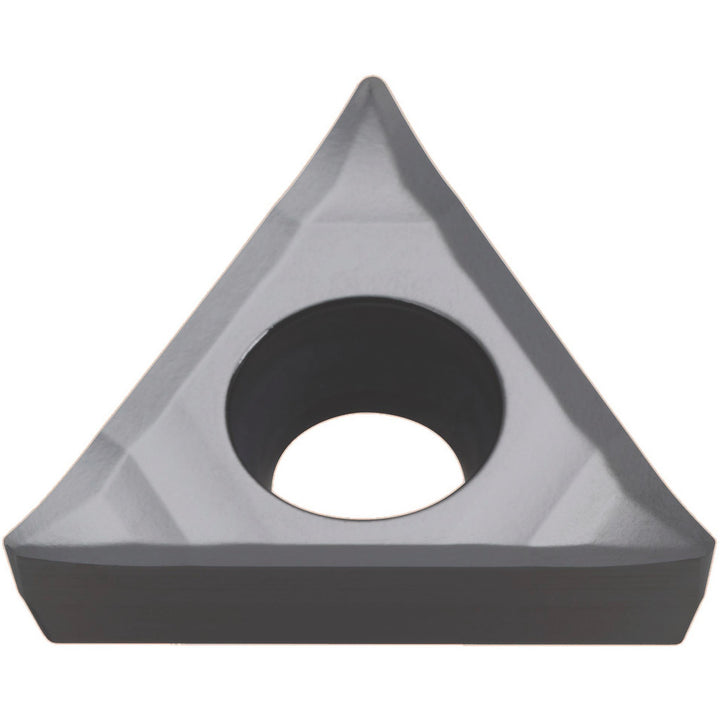

T - Triangle 3/8" IC Carbide Insert, Grade HTI10 - Mitsubishi 461641

Mitsubishi

T - Triangle 3/8" IC Carbide Insert, Grade HTI10 - Mitsubishi 461641

MFR# 461641ISO/ANSI# TCGT16T308

$17.57List $22.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeHTI10
MaterialCarbide

Description

The Mitsubishi 461641 is a carbide indexable insert, grade HTI10.

Specifications

Ansi insert codeTCGT32.52
Ansi size code32.52
Chip breakerAZ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3
Insert styleTCGT
Insert thickness in5/32
Iso insert codeTCGT16T308
Iso size code16T308
Manufacturer gradeHTI10
Number of cutting edges3
Relief angle7
Side clearancePositive
Tolerance codeG
