Mitsubishi

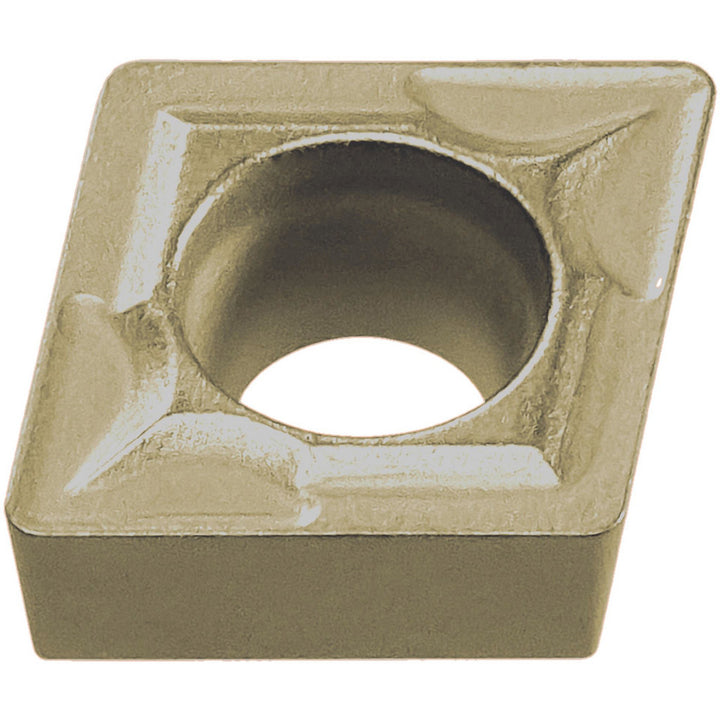

C - Diamond (Rhombic) 80-Deg 3/8" IC Cermet Insert, Grade MP3025, PVD - Mitsubishi 602651
MFR# 602651ISO/ANSI# CCMT09T304
$16.79List $21.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeMP3025
MaterialCermet
CoatingPVD
Description
The Mitsubishi 602651 is a cermet indexable insert, grade MP3025, PVD coated.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerPressed
Clearance codeC
Coating finishPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer gradeMP3025
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeM
