Mitsubishi

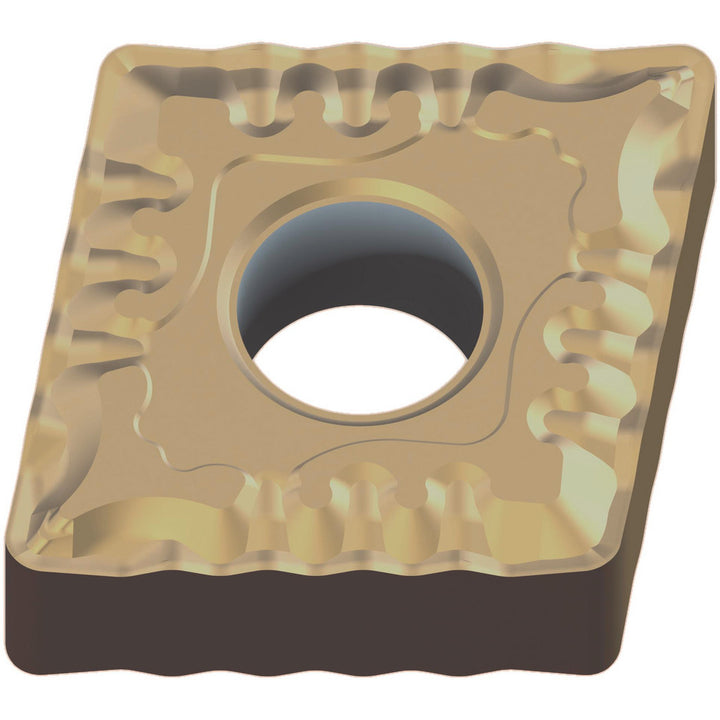

C - Diamond (Rhombic) 80-Deg 1/2" IC Cermet Insert, Grade MP3025, PVD - Mitsubishi 615486
MFR# 615486ISO/ANSI# CNMG120408
$13.23List $16.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeMP3025
MaterialCermet
CoatingPVD
Description
The Mitsubishi 615486 is a cermet indexable insert, grade MP3025, PVD coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerFY
Chip breaker operationFinishing
Clearance codeN
Coating finishPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeMP3025
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
