Mitsubishi

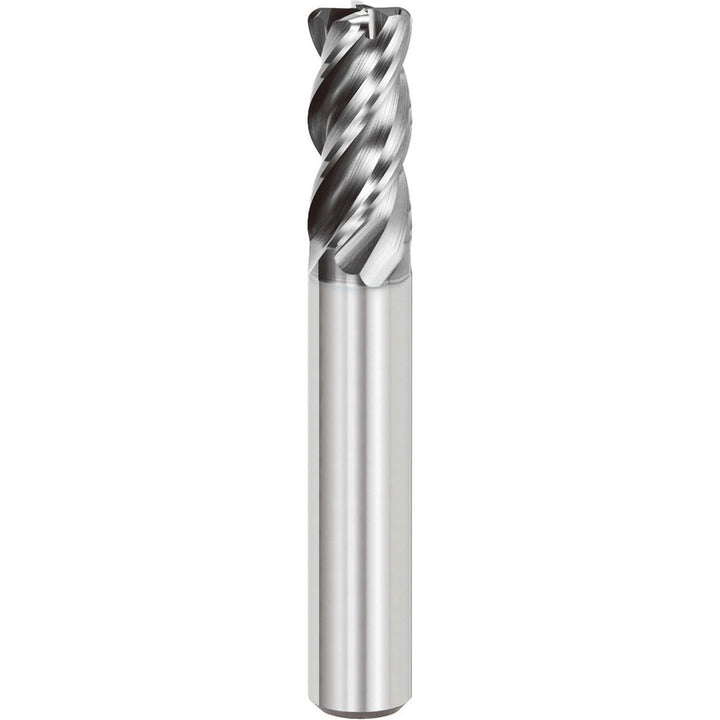

0.1575" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Mitsubishi 617570

MFR# 617570

$84.72List $108.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Mitsubishi 617570 is a 0.1575 4-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for stainless steel, titanium alloy, steel.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0118

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut (mm)11.00

Length typeStandard

Material applicationStainless Steel; Titanium Alloy; Heat-Resistant Alloy; Steel; Alloy Steel; Carbon Steel; Cast Iron; Copper Alloy

Material removal typeRoughing & Finishing

Mill diameter0.1575

Number of flutes4

Overall length (mm)45.00

Primary workpiece materialStainless Steel; Titanium Alloy; Steel

Secondary workpiece materialNon-Ferrous Metal

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
