Mitsubishi

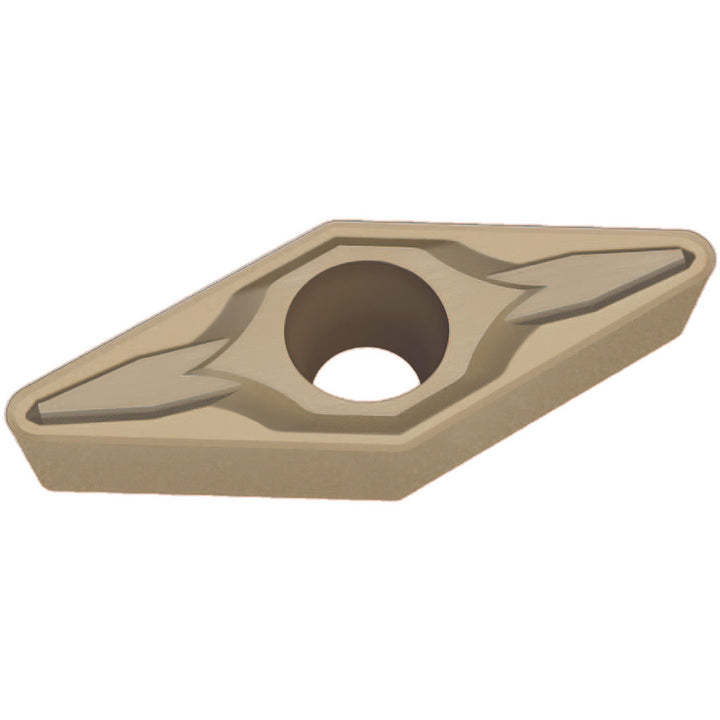

Rhombic 3/8" IC Carbide Insert, Grade MC7025, CVD - Mitsubishi 659323
MFR# 659323
$35.17List $45.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRhombic
GradeMC7025
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 659323 is a carbide indexable insert, grade MC7025, CVD coated.
Specifications
Chip breakerLM
Clearance codeB
Coating finishCVD
Corner radius in1/64
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic
Insert size code3
Insert styleVBMT
Insert thickness in3/16
Manufacturer gradeMC7025
Number of cutting edges2
Relief angle5.000
Tolerance codeM
